Eckdaten:
- StudioLink Version (Plug-in v21.03.2-stable, Standalone v21.07.0-stable):
- both Variante (Standalone and Plug-in (Ultraschall 5.11):
- Betriebssystem (macOS):
- Mac Mini M1, 2020, macOS Sequoia 15.4
Fehlerbeschreibung:
Ich habe in den letzten Jahren Ultraschall und StudioLink problemlos auf demselben System verwendet. Unsere letzte Aufnahme war im Januar, danach hatten wir eine Pause bis letzte Woche – und seitdem funktioniert es nicht mehr.

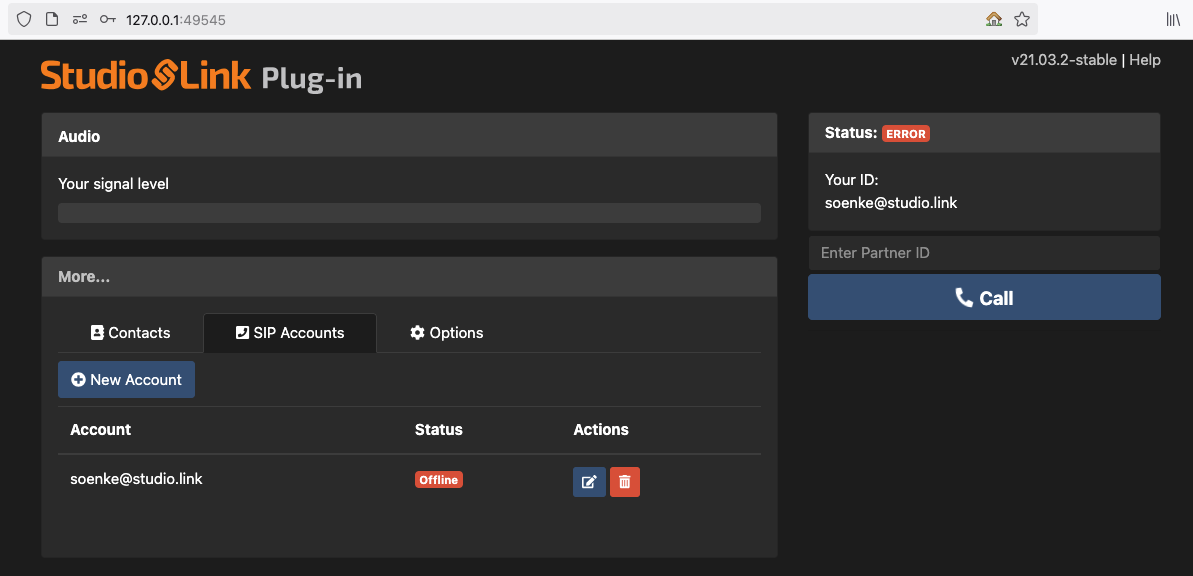

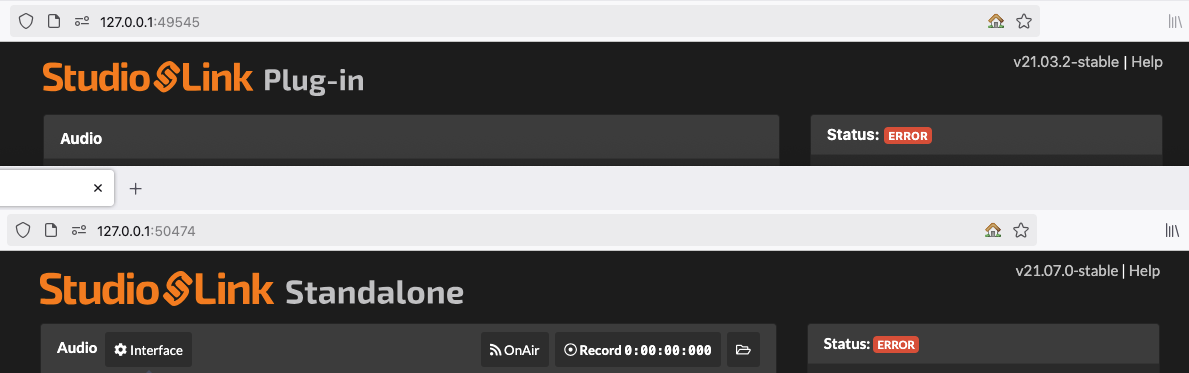

Wenn der Browser geöffnet wird, zeigt er nur „Status: ERROR“ an, und ich habe keine Ahnung warum.
Die Firewall ist deaktiviert, und die Konfiguration stammt noch aus dem Jahr 2022.
baresip configuration
#------------------------------------------------------------------------------
Core
version_str 21.07.0
poll_method kqueue # poll, select, kqueue …
SIP
sip_listen 0.0.0.0:0
#sip_certificate cert.pem
#sip_cafile /etc/ssl/cert.pem
Call
call_local_timeout 120
call_max_calls 7
Audio
#audio_path /usr/local/share/baresip
audio_player slaudio,default
audio_source slaudio,default
audio_alert slaudio,default
ausrc_srate 48000
auplay_srate 48000
ausrc_channels 2
auplay_channels 2
audio_txmode thread # poll, thread
audio_level no
ausrc_format s16 # s16, float, …
auplay_format s16 # s16, float, …
auenc_format s16 # s16, float, …
audec_format s16 # s16, float, …
audio_buffer 20-400 # ms
Video
#video_source avcapture,nil
#video_display sdl,nil
video_size 352x288
video_bitrate 500000
video_fps 25.00
video_fullscreen no
videnc_format yuv420p
AVT - Audio/Video Transport
rtp_tos 184
#rtp_ports 10000-20000
#rtp_bandwidth 512-1024 # [kbit/s]
rtcp_mux no
jitter_buffer_delay 0 # frames
rtp_stats no
#rtp_timeout 60
Network
#dns_server 1.1.1.1:53
#dns_server 1.0.0.1:53
dns_fallback 8.8.8.8:53
#net_interface en0
#------------------------------------------------------------------------------
Modules
#module_path /usr/local/lib/baresip/modules
UI Modules
module slogging.so
module stdio.so
#module cons.so
#module evdev.so
#module httpd.so
Audio codec Modules (in order)
module opus.so
#module amr.so
#module g7221.so
#module g722.so
#module g726.so
module g711.so
#module gsm.so
#module l16.so
#module mpa.so
#module codec2.so
#module ilbc.so
#module isac.so
Audio filter Modules (in encoding order)
#module vumeter.so
#module sndfile.so
#module speex_pp.so
#module plc.so
#module webrtc_aec.so
Audio driver Modules
module slaudio.so
#module jack.so
#module portaudio.so
#module aubridge.so
#module aufile.so
#module ausine.so
Video codec Modules (in order)
#module avcodec.so
#module vp8.so
#module vp9.so
Video filter Modules (in encoding order)
#module selfview.so
#module snapshot.so
#module swscale.so
#module vidinfo.so
#module avfilter.so
Video source modules
#module avcapture.so
#module x11grab.so
#module cairo.so
#module vidbridge.so
Video display modules
#module x11.so
#module sdl.so
#module fakevideo.so
Audio/Video source modules
#module avformat.so
#module rst.so
#module gst.so
#module gst_video.so
Compatibility modules
#module ebuacip.so
Media NAT modules
module stun.so
module turn.so
module ice.so
#module natpmp.so
#module pcp.so
Media encryption modules
#module srtp.so
module dtls_srtp.so
#module zrtp.so
#------------------------------------------------------------------------------
Temporary Modules (loaded then unloaded)
module_tmp uuid.so
#module_tmp account.so
#------------------------------------------------------------------------------
Application Modules
#module_app auloop.so
#module_app b2bua.so
#module_app contact.so
#module_app debug_cmd.so
#module_app echo.so
#module_app gtk.so
#module_app menu.so
#module_app mwi.so
#module_app presence.so
#module_app syslog.so
#module_app mqtt.so
#module_app ctrl_tcp.so
#module_app vidloop.so
module_app webapp.so
#------------------------------------------------------------------------------
Module parameters
Opus codec parameters
opus_bitrate 64000 # 6000-510000
#opus_stereo yes
#opus_sprop_stereo yes
#opus_cbr no
#opus_inbandfec no
#opus_dtx no
#opus_mirror no
#opus_complexity 10
opus_application audio # {voip,audio}
opus_samplerate 48000
#opus_packet_loss 10 # 0-100 percent
Opus Multistream codec parameters
#opus_ms_channels 2 #total channels (2 or 4)
#opus_ms_streams 2 #number of streams
#opus_ms_c_streams 2 #number of coupled streams
vumeter_stderr yes
#jack_connect_ports yes
Selfview
video_selfview window # {window,pip}
#selfview_size 64x64
ZRTP
#zrtp_hash no # Disable SDP zrtp-hash (not recommended)
Menu
#menu_bell yes
#redial_attempts 0 # Num or
#redial_delay 5 # Delay in seconds
#ringback_disabled no
#statmode_default off
avcodec
#avcodec_h264enc libx264
#avcodec_h264dec h264
#avcodec_h265enc libx265
#avcodec_h265dec hevc
#avcodec_hwaccel videotoolbox
mqtt
#mqtt_broker_host 127.0.0.1
#mqtt_broker_port 1883
#mqtt_broker_clientid baresip01
#mqtt_broker_user user
#mqtt_broker_password pass
#mqtt_basetopic baresip/01
sndfile
#snd_path /tmp
EBU ACIP
#ebuacip_jb_type fixed # auto,fixed
